| Control
Panel - Overview
The
Trailerteck can be operated by using either the Control Panel
on the machine or with the hand held remote control.

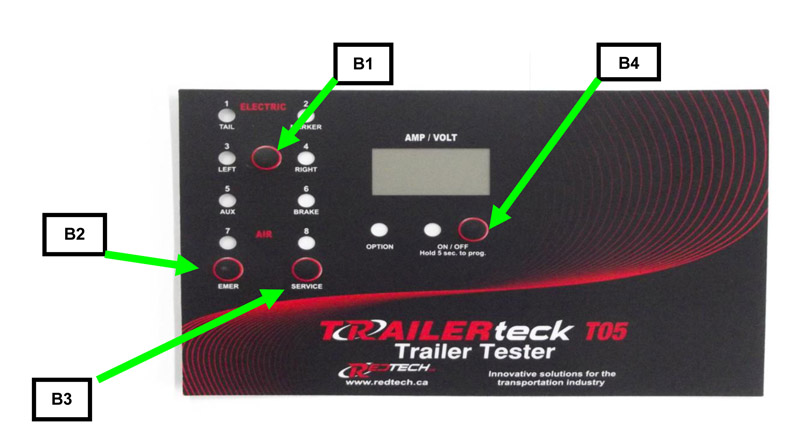

Here is an overview of the features and functions of the control
panel;
|
 |
Buttons
| B1 |
Activates / deactivates
each lighting circuit then progresses to next circuit. |
| B2 |
Activates / deactivates
EMERGENCY brake air circuit. |
| B3 |
Activates / deactivates
SERVICE brake air circuit. Note: Emergency brake must
be activated. |
| B4 |
Main Power ON and OFF.
(Also used to program remote) |
|
Indicator
Lights
| 1 |
Tail Lights |
| 2 |
Marker Lights |
| 3 |
Left Signal |
| 4 |
Right Signal |
| 5 |
Auxiliary |
| 6 |
Brake Lights |
| 7 |
Emergency - Air |
| 8 |
Service - Air |
| Option |
Future Use |
| ON / OFF |
Main Power (Flashes in
programming mode) |
| |
|
| Flashing |
When a circuit is activated
and there is short circuit present, the corresponding
light will blink and the device will emit an audible signal
until the short is repaired. |
|
LED Display
| Voltmeter |
The LED screen
flashes for a few seconds on start up and displays system
voltage.
If the inverter is operational, the inverter voltage will
be displayed.
Otherwise battery voltage is displayed.
|
| Ammeter |
When the LED screen steadies,
it switches to become an ammeter and the current draw
will be displayed.
|
| Freeze Function |
When the LED display
shows FrE, the T05 is in FREEZE mode
Refer below to the "FREEZE" function on the
15- function remote for more information.
|
|
